Product Traditional

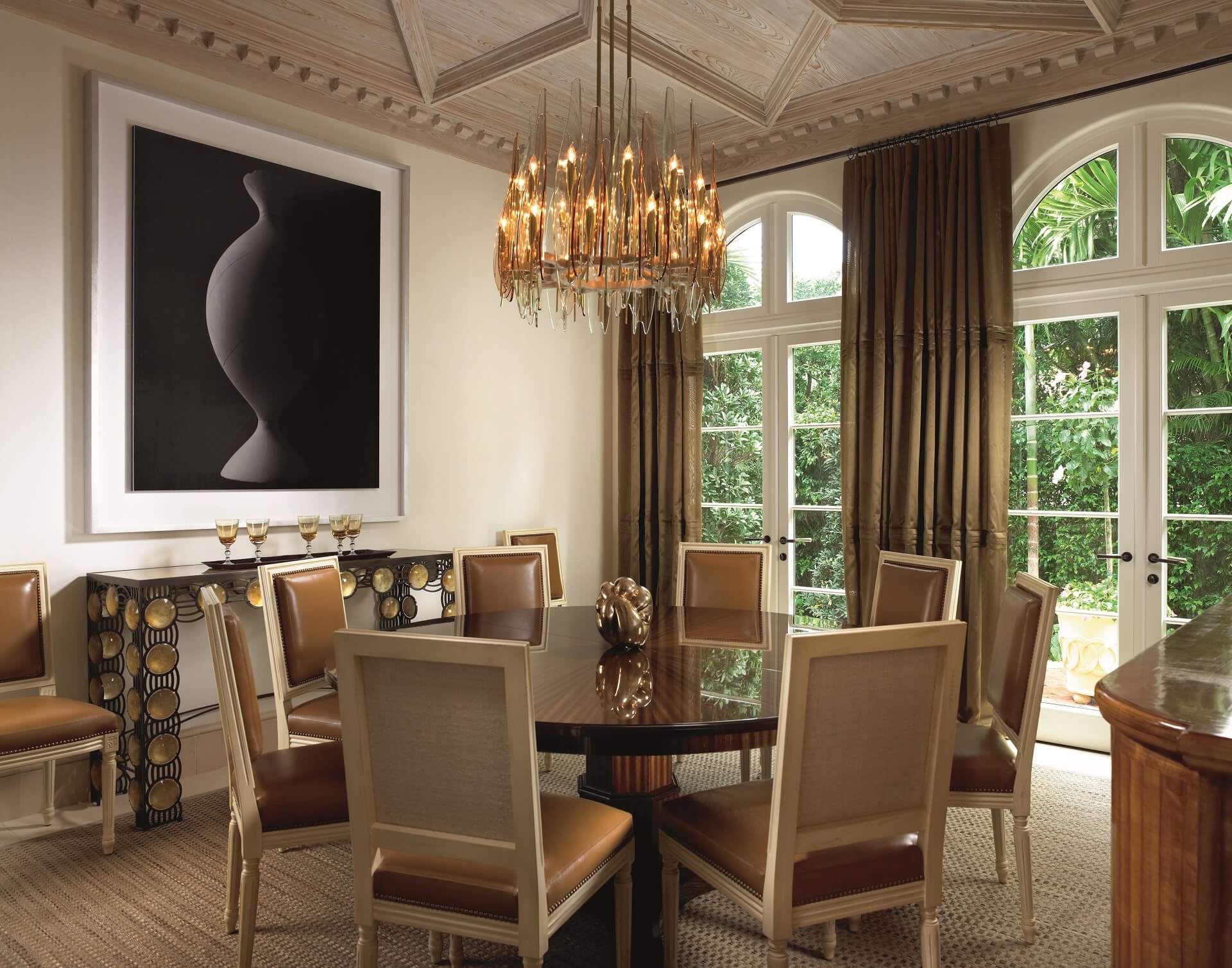

In-/Outswing Doors

  • Miami Dade County approved at 70 psf design pressure for Large Missile Impact.
  • Custom designed and thermally broken bronze in-/outswing thresholds, qualify for impact and water infiltraton. Tested and approved ADA threshold available to meet means of egress. Threshold extentions available.
In-Outswing Doors_collage
  • All strikeplates are custom designed for PEETZ and fully adjustable. Due to the exposure we use only the highest grade stainless steel available ASTM 316 TI.
  • Highest operational comfort due to use of shootbolt locking mechanism (compared to use of mushroom cam system).
  • Steel reinforcement of vertical stiles at mechanism will minimize risk of warping in height.
  • Double weather-stripping (or barrier), continuous at corners to bronze threshold and at hinges achieve highest performance regarding air leakage , water resistance and noise protection.
  • Wet glazing method, no visible nails in glazing stops.
  • Additional features include motorlocks, magnetic locks, full concealed mechanical door closer, adjustable heavy duty friction holder with automatic hold open and deadstop function, full door motorization with push and go function are available in accordance with our Impact test certifications.

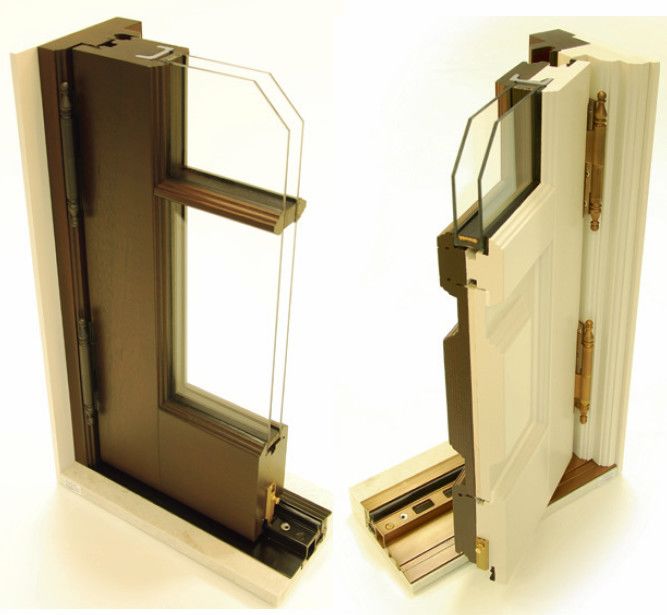

Left: Outwing Door with muntin bar, threshold an hinges in
oil rubbed bronze finish.

Right: Outswing Door in traditional design with raised
panel in wood species African Sipo Mahogany with split
finish (optional). Threshold and hinges in antique bronze
finish.


Product Traditional

Double Hung Windows

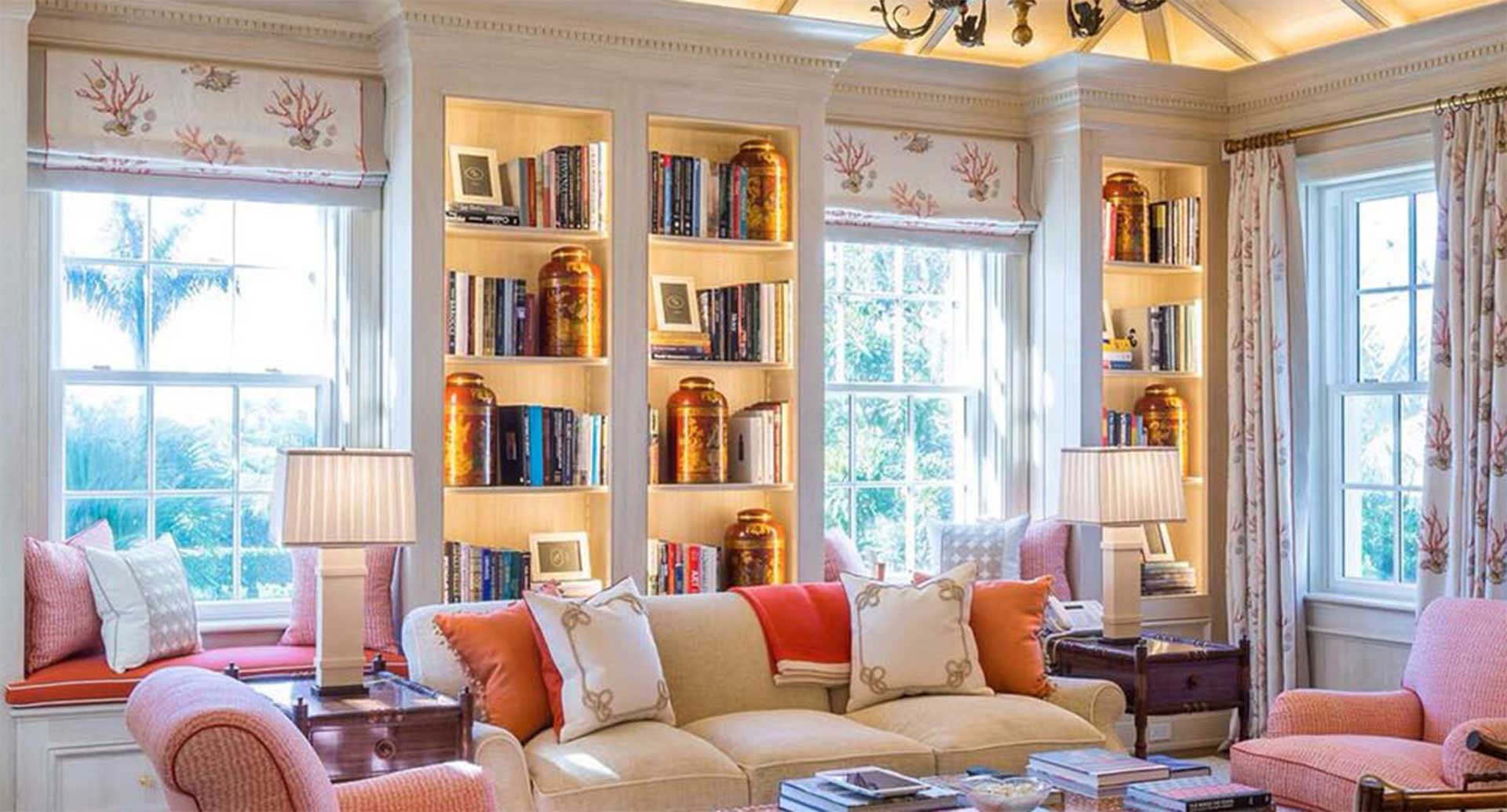

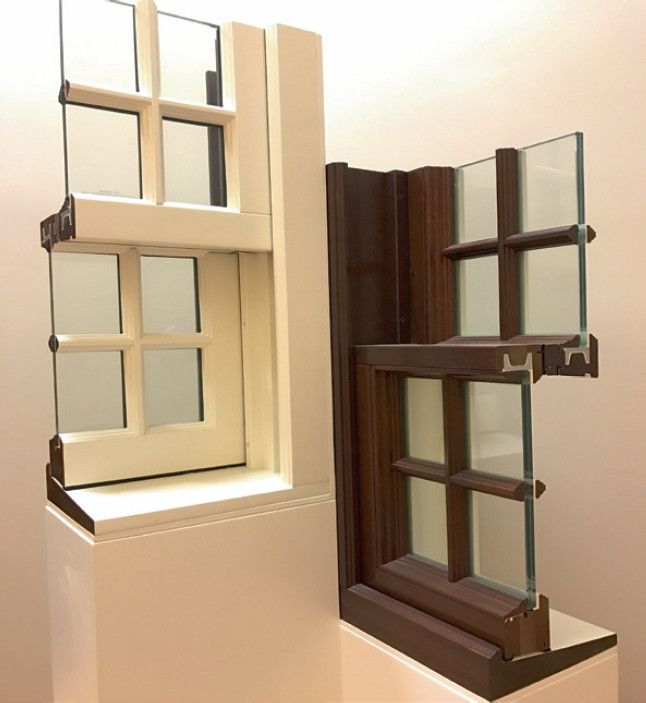

Traditional Double Hung Windows
  • Miami Dade County approved at 75 psf design pressure for Large Missile Impact.
  • Max. size per approval:
    width of 5’-3” and a height of 10’-1”. Third party engineering for other dimensions is available.
  • Concealed spiral balances or weight & chain are both Miami Dade County approved. Single and Double Hung.
  • Ultra narrow horizontal meeting stile with only 1 15/16” (49 mm). Meeting stiles with hidden concealed steel reinforcement.
  • Special sloped male/female sealing bridges at the ends of the horizontal meeting stiles. These custom seals ensure that all protocols regarding water resistance will be met at the highest level of Miami Dade County without restraining the operational comfort.
  • No exposed tubes, metal or plastic fasteners.
  • Flexible stile and rail dimensions to match local landmark requirements.
Seite 13.jpg

Product Traditional

Outswing Casement

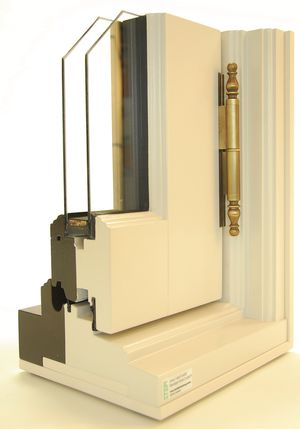

Traditional Outswing Casement
  • Miami Dade County approved at 70 psf design pressure for Large Missile Impact.
  • Narrow dimensions,
    At astragal: 6” (152 mm)
    At jamb: 3 7/16” (87 mm)
  • Double weather-stripping continuous at corners and at hinges, achieve highest performance regarding air leakage, water resistance and noise protection.
  • Shown displays are in wood species African Sipo Mahogany. Multiple wood species, split species or split finishes are available.
  • Handle driven friction stops are available for single at 27 3/16” (690 mm) and for double casements at 55 ¾” (1416 mm).
  • Wet glazing method, no visible nails in glazing stops.

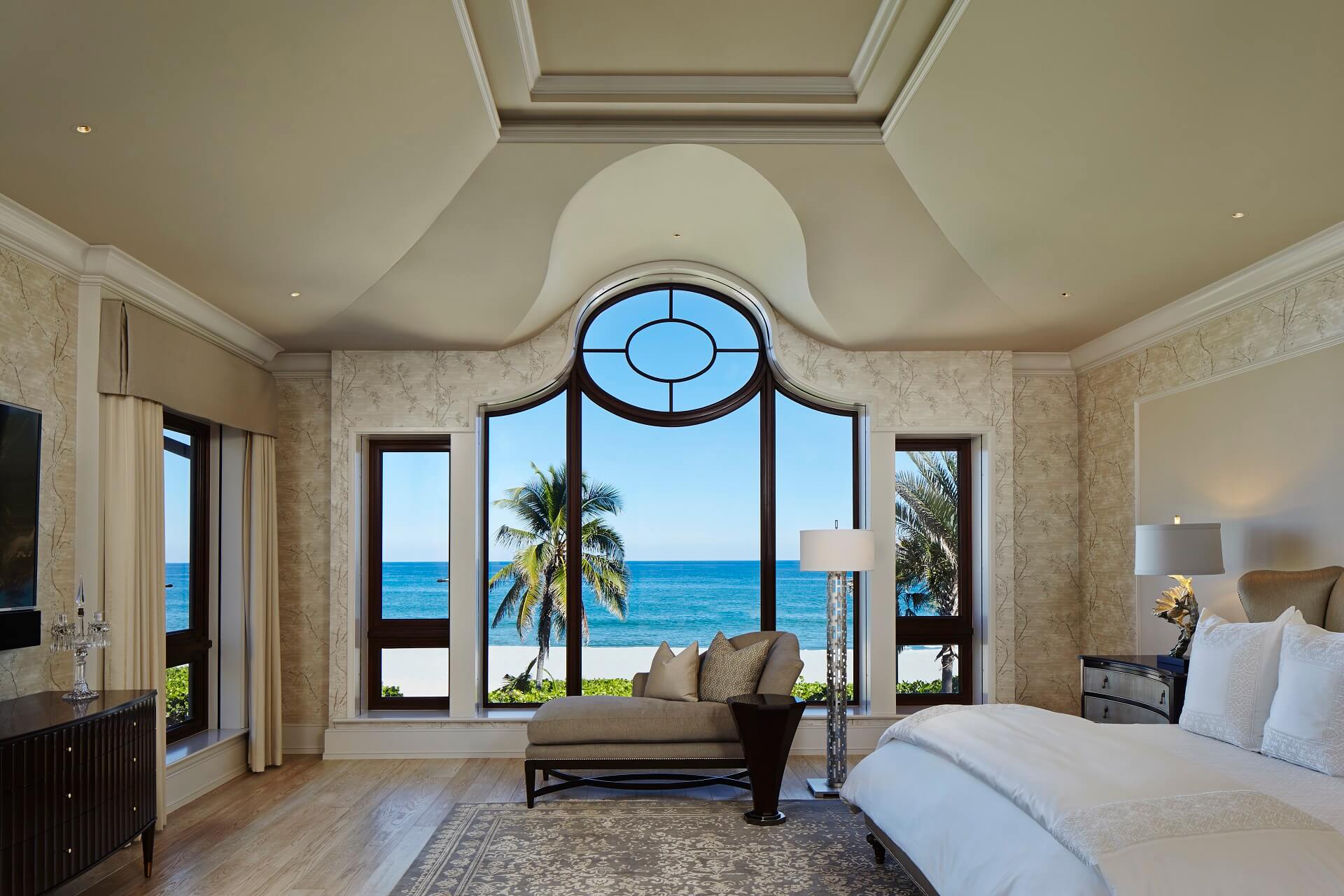

TRADITIONAL Direct Set&Fixed XXL Glazing.jpg

Product Traditional

Direct Set & Fixed XXL Glazing

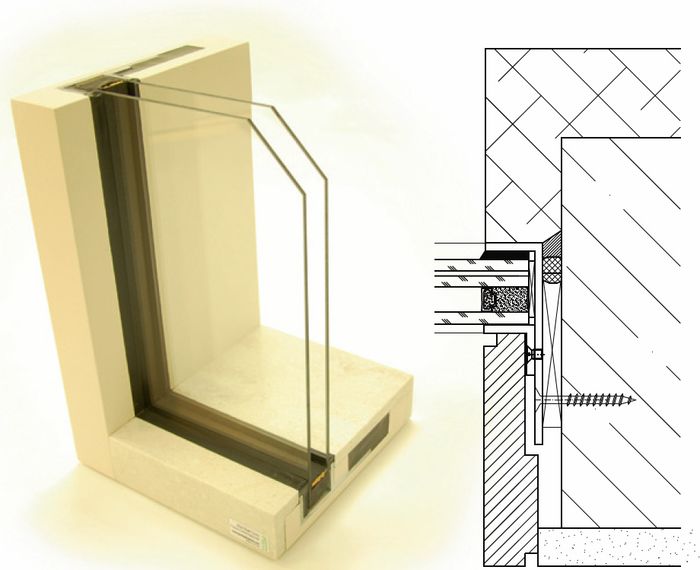

Traditional Direct Set & Fixed XXL Glazing

Miami Dade County approved at 75 psf design pressure for Large Missile Impact.

Direct Set:

  • Max. Size per approval:
    PVB Glass-Type: 75”x 96” or 50”x144”
    or third party engineering for other dimensions available.
  • Mahogany frame, bronze cladding optional.

Fixed XXL Glazing:

  • Max. Size per approval:
    SGP Glass-Type: 99”x132” or 91”x144”
    PVB Glass-Type: 78 ½”x132” or 72”x144”
    or third party engineering for other dimensions available.
  • Aluminum system, mahogany or bronze cladding optional.
  • Allows for frameless glass installations as shown on left.
Traditional Lift+Slider_1.jpg

Product Traditional

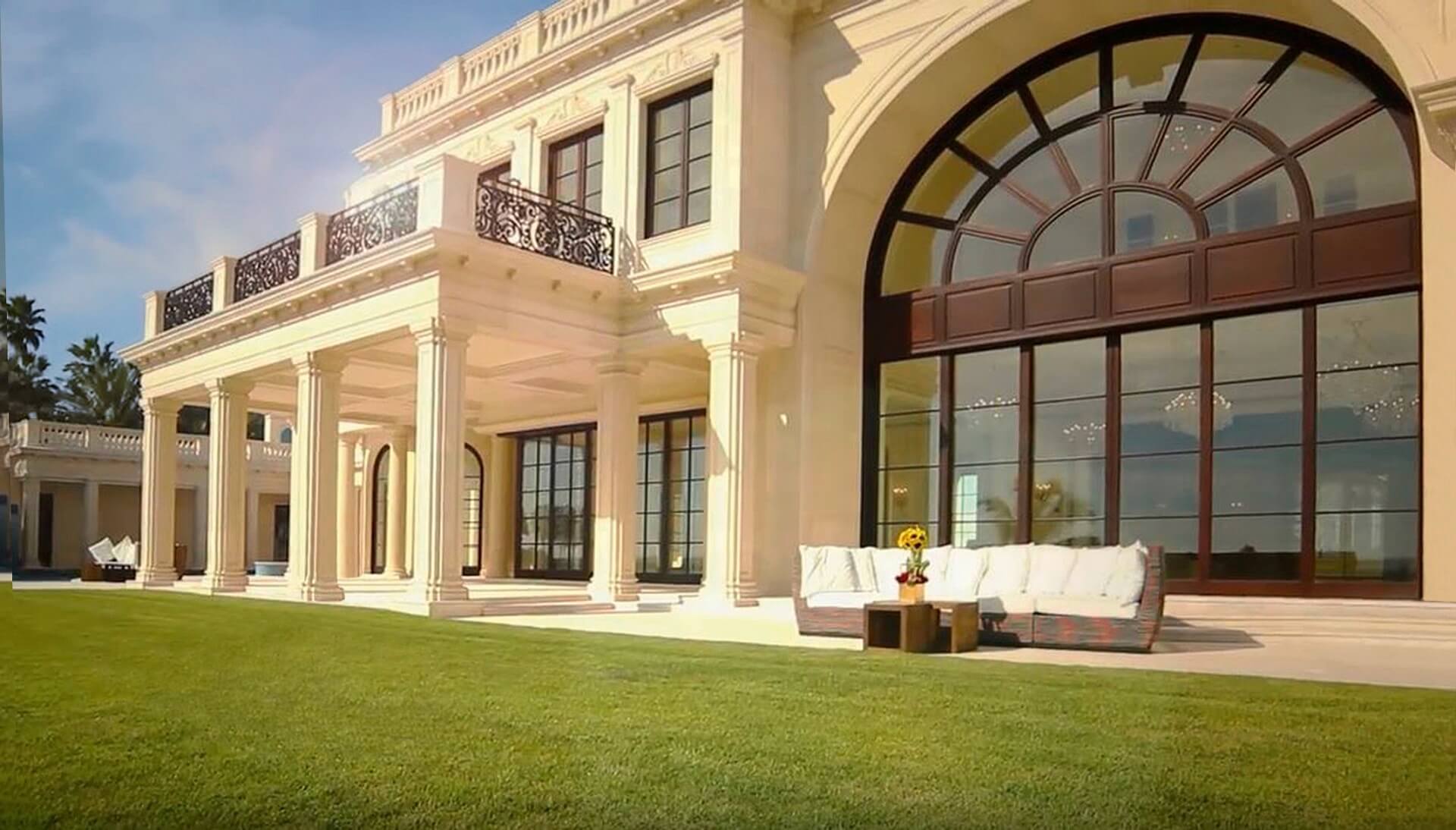

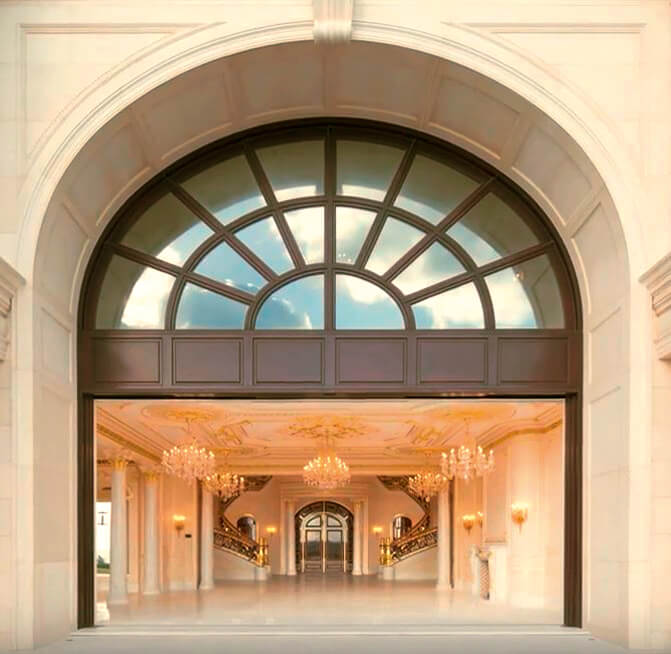

Lift and Slider

Lift and Slider

Flush threshold with recessed drainage.
Panels are full flush pocketing.

  • Miami Dade County approved at 70 psf design pressure for Large Missile Impact.
  • Max. size per approval: 5’-2” x 11’, or third party engineering for other dimensions available.
  • Unlimited number of panels.
  • Unlimited number of tracks.
  • Steel reinforcement of vertical stiles at mechanism will minimize risk of warping in height.
  • Standard threshold in aluminum.
  • Aluminum threshold can be cladded in Bronze (optional).
  • Recessed drainage and flush threshold with an offset from interior to exterior floor = 0 available. Track projects only 3/16” above the finished floor and allows for modular threshold. All tested and approved for Miami Dade County.
  • Full motorization for vertical lift and horizontal sliding operation available.
  • 90° or custom angles cornerless layout available.
  • Full flush pocketing or non pocketing.
  • Different wood species available.
  • Bronze cladding available.
Seite 15.jpg

Product Traditional

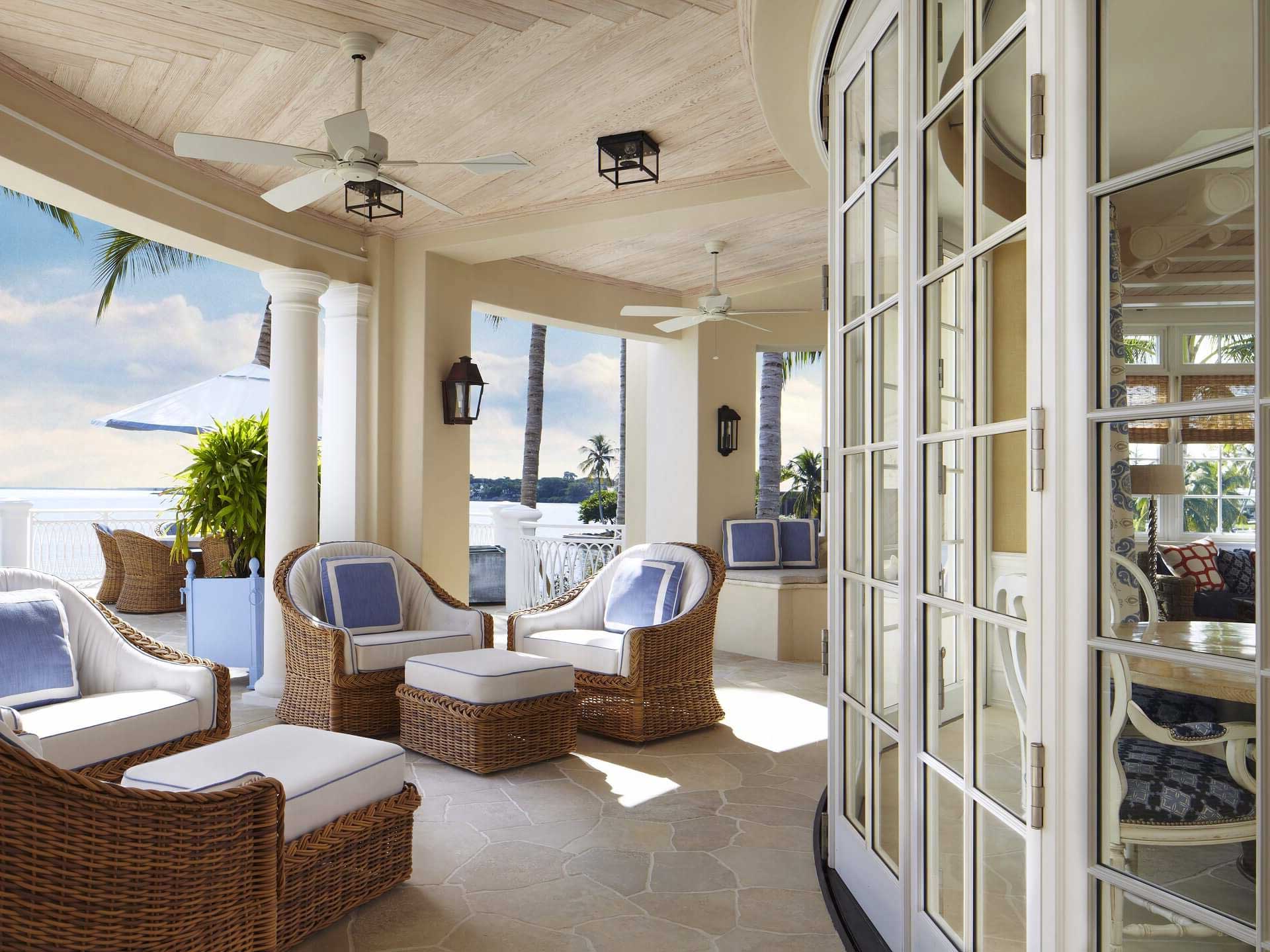

Bi-Fold

  • Miami Dade County approved at 70 psf design pressure for Large Missile Impact.
  • Unlimited number of panels 3’-7” x 11’, or third party engineering for other dimensions available.
  • Individual panels can be adjusted in width to compensate for hygroscopic shrinking or expanding.
  • Ultra narrow dimensions at astragal: 6 ¼” (159 mm) available. These dimensions are flexible and can be increased for example to the standard 7 ¾” (197 mm) to allow for more hardware options.
Traditional Bi-Fold
  • Steel reinforcement of vertical stiles at mechanism will minimize risk of warping in height.
  • Consistent and uniform design throughout the door. All meeting stiles regardless if hinged or true double French door meeting stiles show the same symmetrical design and dimensions.
  • French Door Concept:
    - Same bronze threshold as swing doors with the same off set from interior to exterior floor.
    - French/swing door access for easy exit and entry.
    - Easy operation of all panels, no flushbolts and no loose evers.
    - Highest operational comfort due to use of shoot bolt locking mechanism (compared to use of mushroom cam system).
    - All strikeplates are custom designed and fully adjustable. Due to the exposure we use only the highest grade stainless steel available ASTM 316 TI.
    - Tested and approved ADA threshold available to meet me ans of egress. Miami Dade County approved at 70 psf design pressure for Large Missile Impact.
  • Radius/curved layouts available.
  • 90° or custom angles cornerless layout available.

Above:
Segmented Bi-Folding Door for radius/curved layout.

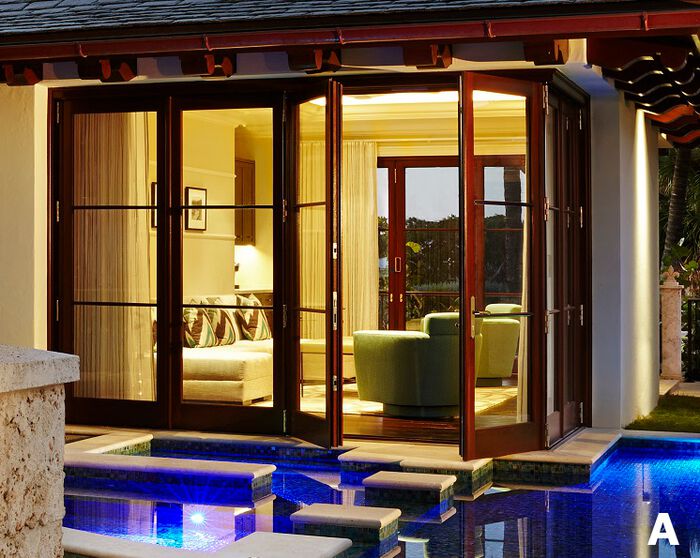

Image A:
Bi-Folding Door for 90° cornerless layout.
